Tesla Model 3 4.6" HUD Instrument Cluster — OBD2 Driver Display

Name: Tesla Model 3 4.6" HUD Instrument Cluster — OBD2 Driver Display
Brand: Tes Accessories
SKU: 64f5e326-010e-49d7-aa20-56ab7b5cbc63

$250.00 AUD

$250.00 AUD $350.00 AUD

Sale Sold out

Aus-Stocked — Ships within 24 hrs on business days

Est. delivery: 3–8 business days to most AU addresses

CPU Type: For AMD CPU

For AMD CPU For Intel CPU

Product variants

Secure checkout with

Free shippingAll AU orders
24hr dispatchBusiness days
AU stocked3-8 day delivery
Easy returnsHassle-free

View Product Details

✅ Fits: Tesla Model 3 (2019–2023, all variants)
🇦🇺 Aus-Stocked — Ships within 24 hrs on business days
📦 Est. delivery: 3–8 business days to most AU addresses

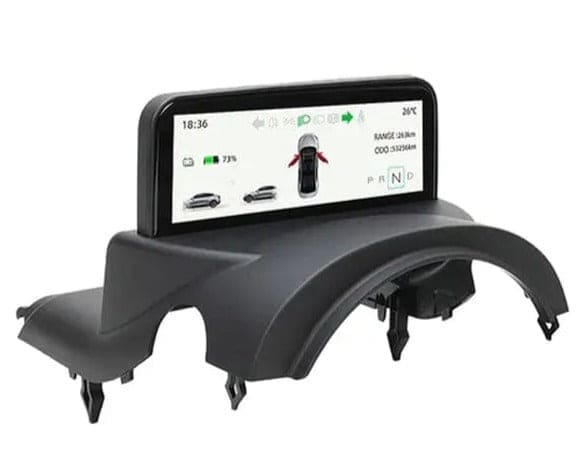

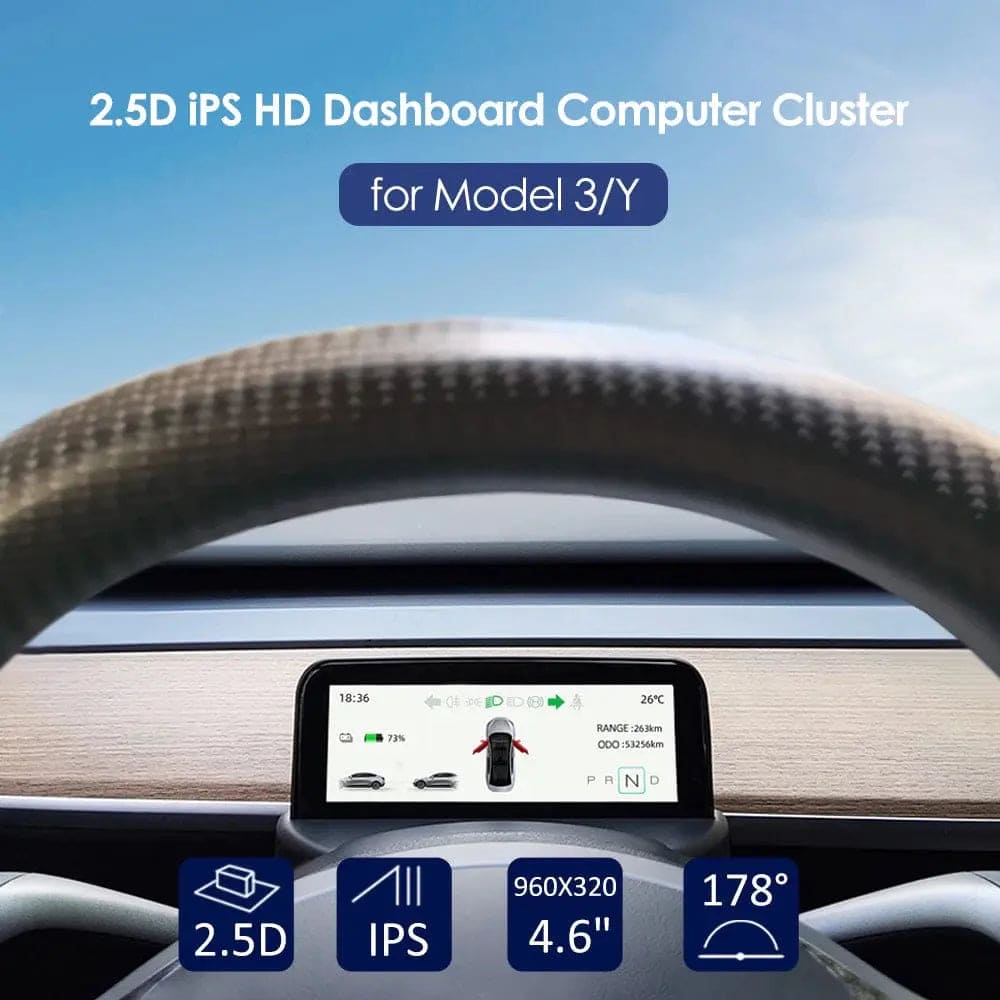

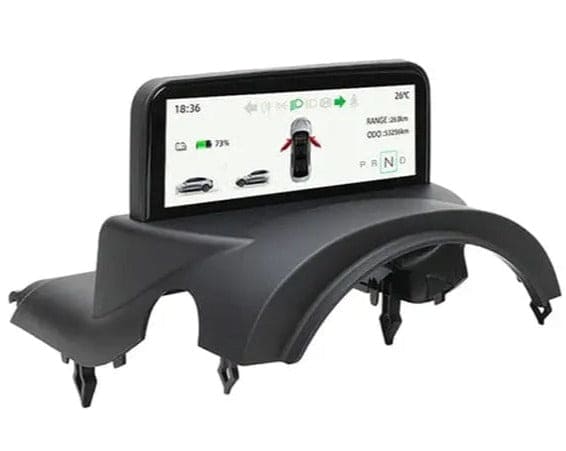

A 4.6" HUD instrument cluster for the Tesla Model 3 that adds a traditional driver-facing display to Tesla's screenless dashboard. Mounts above the steering column and shows real-time speed, battery percentage, range, power draw, and turn signal indicators — all from the OBD2 port, with no wiring and no software changes required.

High-brightness IPS screen with anti-glare coating for clear visibility in Australian sunlight. Slim adhesive bracket positions the screen directly in your line of sight above the steering column. Powered entirely from the OBD2 port — no fuse tapping, no USB cable running across the dash.

Browse the full Tesla Model 3 Accessories at Tes Accessories.

Screen: 4.6" IPS LCD with anti-glare coating
Connection: OBD2 plug-and-play — no tools or wiring required
Display data: Speed (km/h), Battery %, Range (km), Power draw (kW), Turn signal indicators
Brightness: Adjustable — sunlight-readable in Australian conditions
Power source: OBD2 port — no USB cable, no fuse tapping

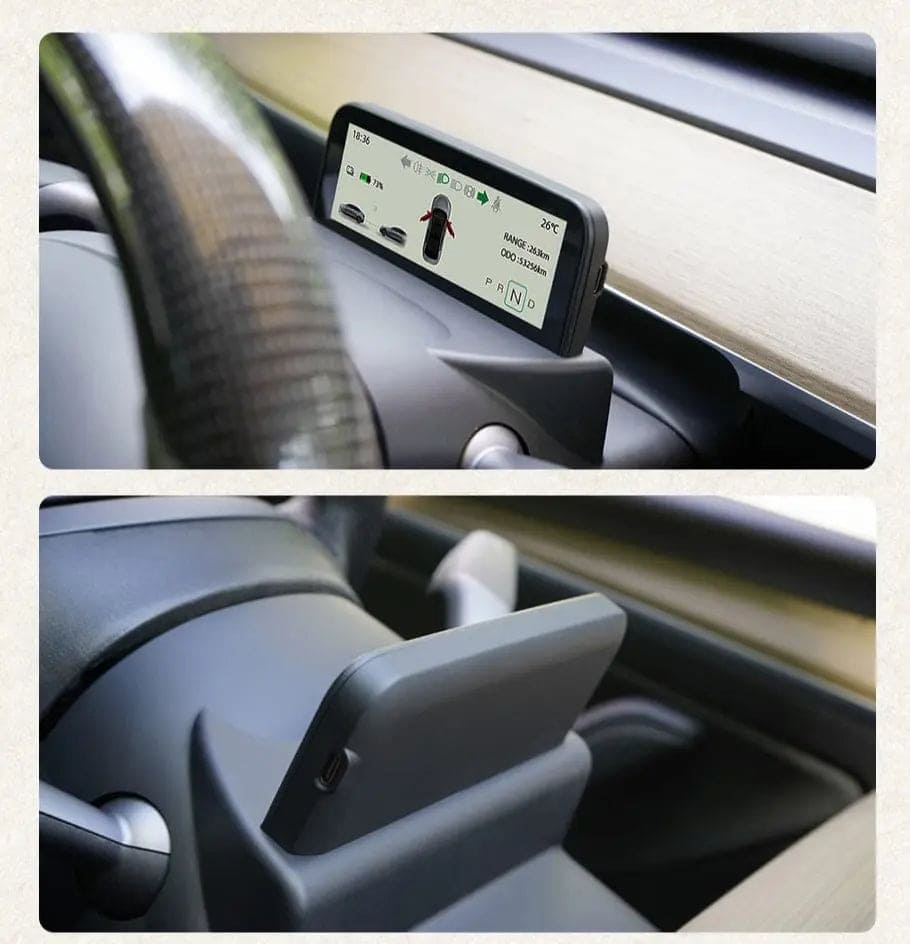

Mount: Slim adhesive dashboard bracket, positions above steering column
Data mode: Read-only OBD2 — does not write to vehicle systems
Variants available: AMD CPU / Intel CPU versions

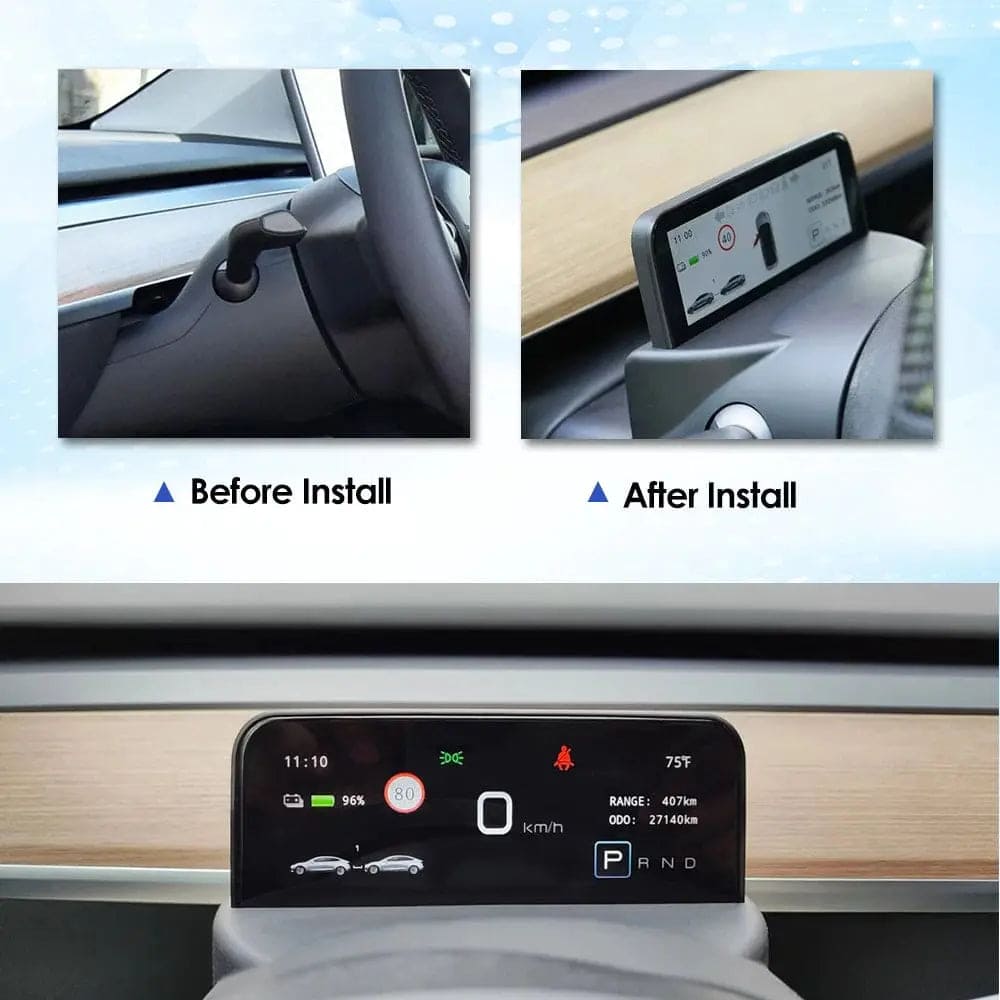

Plugs into the OBD2 port under the Model 3 dashboard — takes under 2 minutes to install
Displays real-time speed in km/h so you never need to glance at the centre screen while driving
Shows battery percentage and estimated range at a glance — ideal for managing charging stops on long Australian drives
Live power draw (kW) readout helps with efficiency driving and hypermiling
Left and right turn signal indicators mirror the car's turn signals in your direct sightline
Slim adhesive bracket positions the screen above the steering column — no drilling, no permanent modification
Reads data passively from the OBD2 port — cannot interfere with Autopilot, FSD, or any Tesla software
Powers on automatically with ignition and powers off when the car sleeps

Primary fitment: Tesla Model 3 (2019–2023, pre-Highland) — all variants confirmed
Compatible variants: Model 3 Standard Range, Long Range, Performance
Also compatible: Tesla Model Y (2019–2024, all variants)
Highland Model 3 (2024+): OBD2 data fully compatible — dashboard bracket position may differ from pre-Highland profile
Right-hand drive (Australian spec) confirmed fitment
OBD2 port location: driver's side, under the dashboard
NOT compatible with Tesla Model S, Model X, or Cybertruck

Q: Why doesn't the Tesla Model 3 have a built-in instrument cluster?

A: Tesla deliberately removed the driver-facing cluster on the Model 3 to simplify the interior — all data is shown on the centre touchscreen. Many Australian drivers find this uncomfortable as it requires looking sideways away from the road. This 4.6" HUD restores a conventional instrument cluster position above the steering column.

Q: What does the Tesla Model 3 HUD instrument cluster display?

A: The HUD displays vehicle speed in km/h, state of charge as a battery percentage, estimated range in kilometres, real-time power draw in kW, and left/right turn signal indicators. All data is read live from the OBD2 port — nothing is written to the car's systems.

Q: Will this OBD2 HUD void my Tesla Model 3 warranty in Australia?

A: The display reads data passively from the OBD2 diagnostic port and writes nothing back to the vehicle. Under Australian Consumer Law, plugging a read-only device into the OBD2 port is not grounds for voiding your warranty. If you have specific warranty concerns, consult Tesla Service directly.

Q: Does this HUD work on the 2024 Tesla Model 3 Highland?

A: The OBD2 data connection is fully compatible with the Highland. However, the adhesive dashboard bracket is profiled for the pre-2024 Model 3 dashboard shape. Check the physical mounting fit before committing the adhesive if you own a Highland (2024+).
